product product Item shown may not be actual product.
Product and price information are subject to change without notice.
$7,815.96 *
*log in for dealer pricing

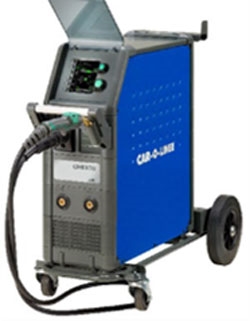

CMI300 Single Pulse Boost Welder


Item Number: CARNA90575    Supplier: CAR-O-LINER COMPANY

Toyota Certified Collision Center Program members receive an additional discount on this item. Call the ADE Program at 800-368-6787 and ask to speak to the Collision Support Specialist for details.

Description

The CMI300 Pulse compact and fully digital welder is designed to meet carmakers' standard for joining processes in thin high-tensile steel, aluminum and stainless steel. In addition to sheet metal welding, the CMI300 Pulse features MIG brazing with and without pulse of galvanized steel plates.  This ensures maintenance of the materials in terms of corrosion and strength and reduces post-treatment of distortion of plates and profiles to a minimum.  The result is cost-effective and efficient welding.

Features

  • 36 Pre-Set programs that meet requirements for welding and brazing
  • Double Pulse ensures precise control of the arc and minimizes weld spatter
  • Mig-A-Twist® ergonomic torch has a turnable swan neck for easy access to hard-to reach locations
  • Boost For All Main Voltages - Equipped with an electronic auto transformer for welding on all mono-phase and three-phase mains votages from 208V to 440V (50/60 Hz)
  • Four-Roll Wire System for stable wire feeding
  • Tacho Control of wire motor for ultra precise feeding
  • LED Light in the wire console for easy change of wire and wire rolls in low light environment
  • Soft-Key Control Panel with color display and an intuitive icon-based menu
  • Arc Adjust function for precision adjustment between soft and hard arc
  • Software Update via SD card

Warranty

Two years

Product Specifications

  • Current Range: 15-300
  • Mains Voltage +/- 15% (50-60 Hz) V: 3 x 230 1 x 230
  • Minimum Generator Size: 16 kVa
  • Duty Cycle 100% / 40°C, A / V: 200 / 100 / 24.0
  • Duty Cycle 100% at 40°C, A / V: 230 / 60 / 25.5
  • Duty Cycle Max. / 40°C, A / % / V: 300 / 20 / 29.0
  • Duty Cycle 100% / 20°C A / V: 250 / 100 / 26.5
  • Duty Cycle Max. / 20°C, A / % / V: 300 / 60 / 29.0
  • Open Circle Voltage, V: 50-60
  • Protection Class (for outdoor use): IP 23S
  • Norm: IEC60974-1, IEC60974-5, IEC60974-10 CI,A
  • Dimensions: 32.99"H x 17.44"W x 48"L
  • Weight: 108.02 lbs.
